NCA600SZQ Three-side Seal, Stand-up, Cheerpack Pouch Making Machine

Short Description:


Product Detail

Product Tags

Main Technical Specification

Model NCA600SZQ
Roll size  Max width 1220mm

Max diameterφ800mm

Auxiliary material Cheerpack pouch: Max width 150mm; Max diameterφ500mm

Stand-up pouch:  Max width 150mm; Max diameterφ600mm

Pouch making

specification

 Cheerpack pouch: (Width ): Max 600mm (Length ): 30-320mm,

(Side gusset):  20-70 mm

 Stand-up pouch: (Width): 80-320mm,(Width ): 80-600mm

( Bottom gusset):  20-70 mm

*(If over 320mm, need to use multiple conveying)
Bag-making speed & Suitable bag type (3-side seal bag): 150parts/min   ;   (Double bags feed):300bags/min

(Stand-up pouch): 90parts /min   ;   (Double bags feed):180bags/min

(Cheerpack pouch ): 80 parts /min  ;  (Three bags feed):240bags/min

Power AC 380V,  50HZ,  3P, 69KW
Compressed air 0.5-0.7Mpa
Cooling water 10L/min
(L×W×H)Dimension 10500×2500×2000(mm)
 Weight 6000KG

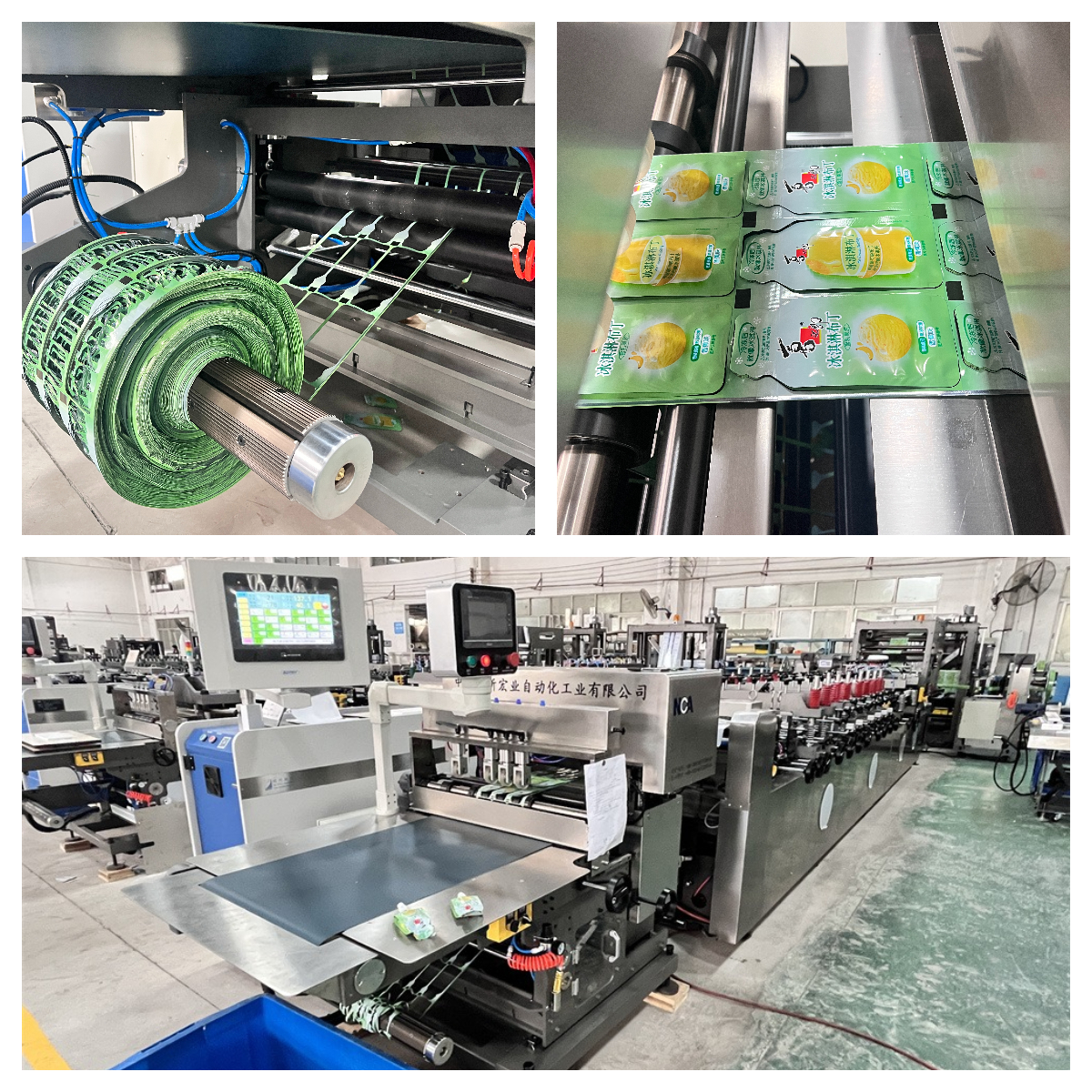

详情图
