NCA600SKW Three-side Seal Bag Making and Handle Pressing Machine

Short Description:

l.This machine is used to make packaging bags of various laminated films.

2.It can be widely suitable for making three-side seal bag (each time, two bags feed),stand-up bag, three-side seal pressed-handle bag.

Send email to us

Product Detail

Product Tags

Usage

1.This machine is used to make packaging bags of various laminated films.

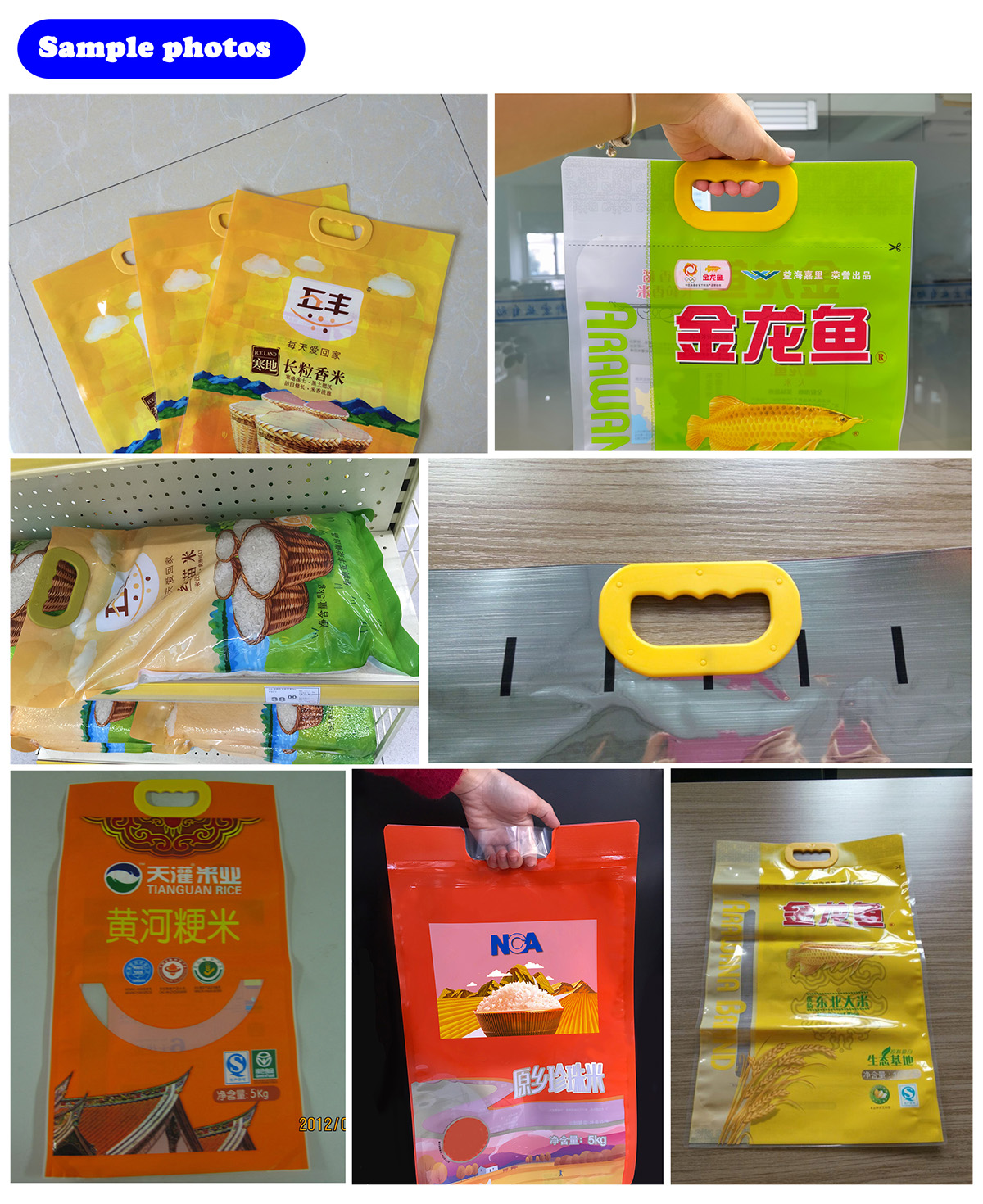

Through the optional auxiliary device, it can be widely suitable for making three-side seal bag, stand-up pouch three-side bag with pressed handle or soft handle automatically for rice and flour etc.

Advantage

1.Applicable bag type: 5 kg / 10 kg

2.Speed: 40pcs / min

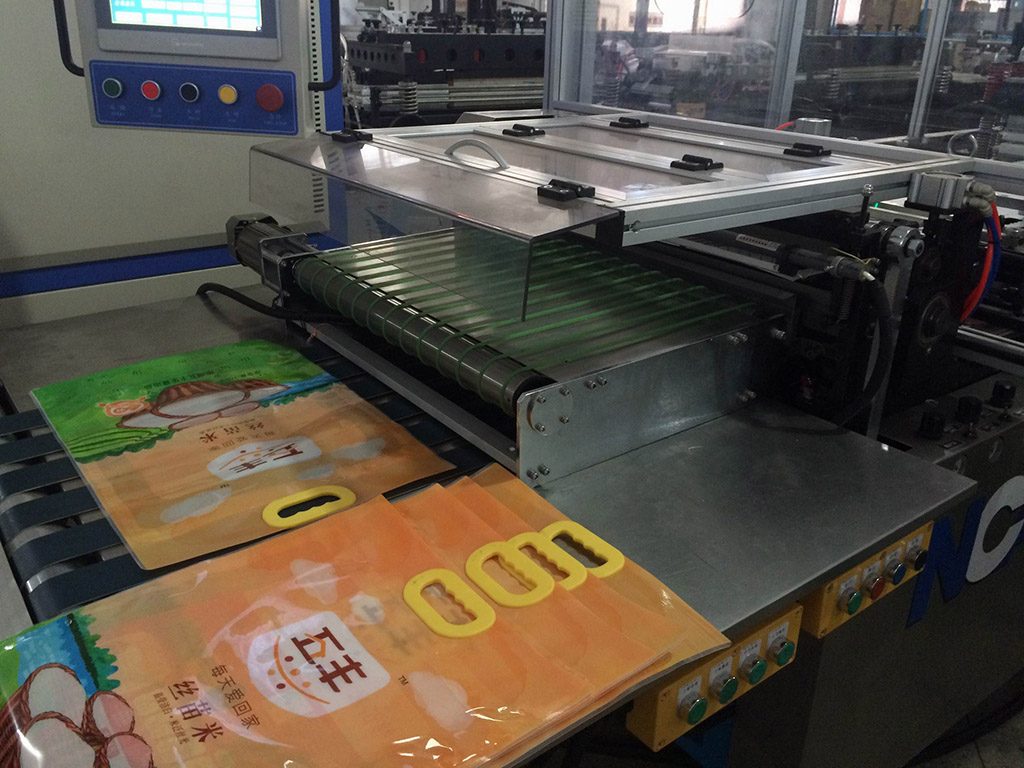

3.Automatic hole punching, handle pressing and bag making in-line , save labor costs.

4.The sealing quality is smooth and beautiful.

List of Key Components

1.	PLC control module	Panasonic Japan
2.	Servo motor	Panasonic Japan
3.	Film unwinding constant tension, AUTO rectifying
4.	Speed reducer	Planetary China
5.	Photoelectric	Datalogic Italy
6.	Cylinder	AirTAC China
7.	10.4’ touch screen	WEINVIEW, Taiwan
8.	Machine control system	Hangzhou Sotry, China

Machine technique parameters

1.	Film material	BOPP、CPP、PET、PE、NYLON etc. Various laminated films.
1.	Capacity:	Three side seal bag:80-150parts/minStand up bag: 90parts/minThree-side seal with handle bag: 35-40parts/min
2.	Max film reel unwinding speed:	45m/min (Machine designing speed)
3.	Bag making error	length and width : ±1mm.
4.	(Actual capacity is according to the bag length, film material and hot sealing efficiency.)
5..	Film reel size:	Main film:Max φ800×1220mm(width), inner hole：3′
5..	Film reel size:	Gusset film: Max φ600×150mm, inner, hole：3′ air shaft
6.	Pouch size:	Bag length: Max600mmBag width: Max420mm, (over 420 mm need the multiple conveying).
7.	Total power	About 50KW
8	Power voltage	AC Three phase 380V，50HZ
9	Air pressure:	0.5-0.7Mpa
10	Cooling water:	10L/min
11	Machine working table height:	950mm
11	Machine working table height:	handle operation height 850mm
12.	Machine dimension(MAX):	L×W×H: 18500mm×3500mm×2200mm
13.	Machine weight:	about 7000KG
14	Machine color:	Gray (wallboard)/ stainless steel (guard board)
