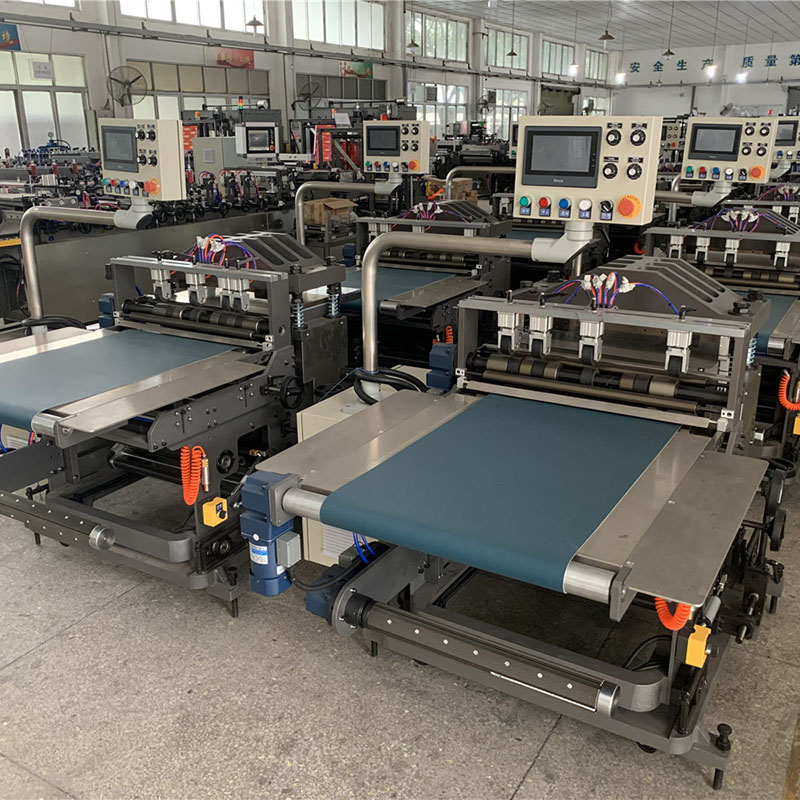

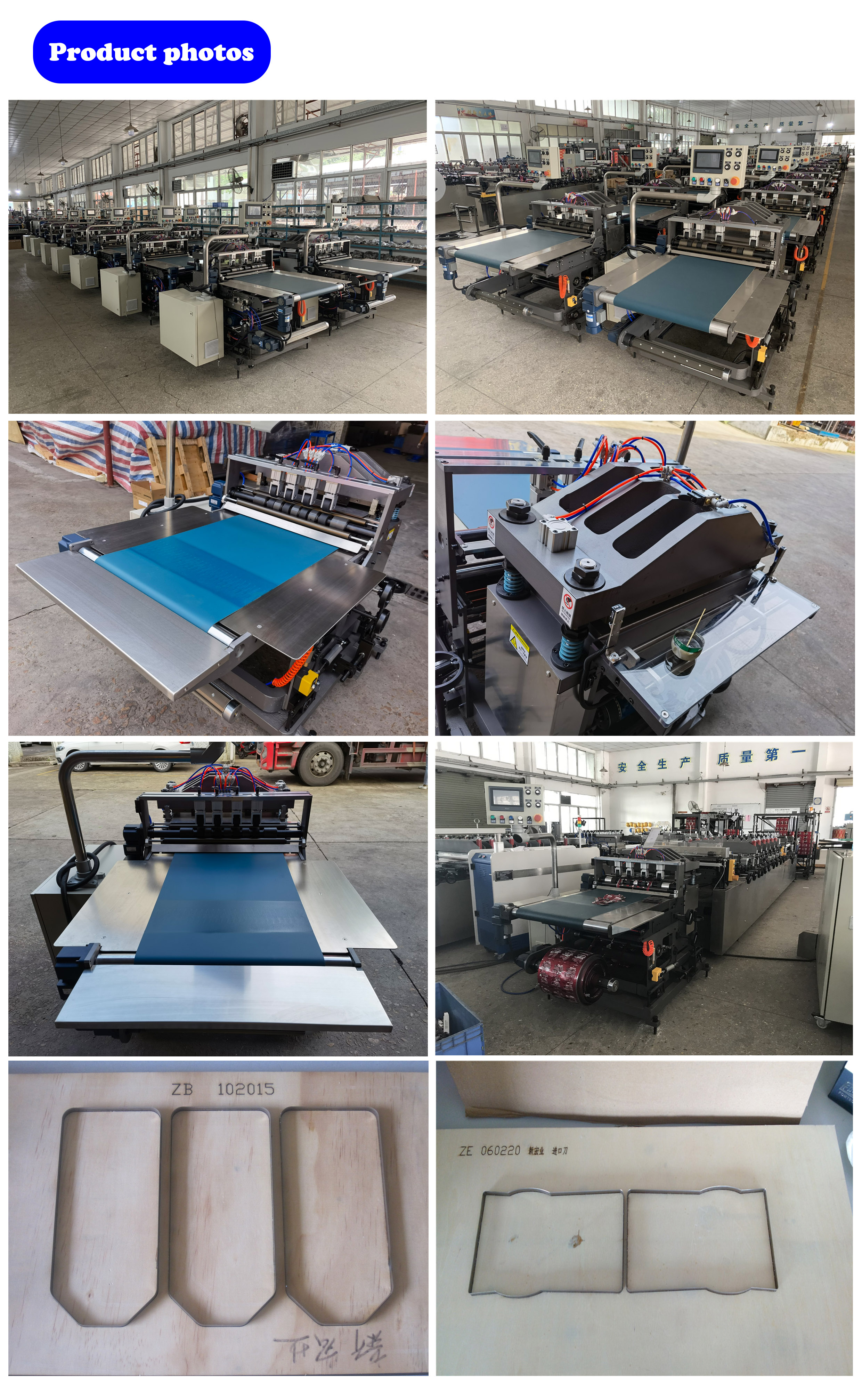

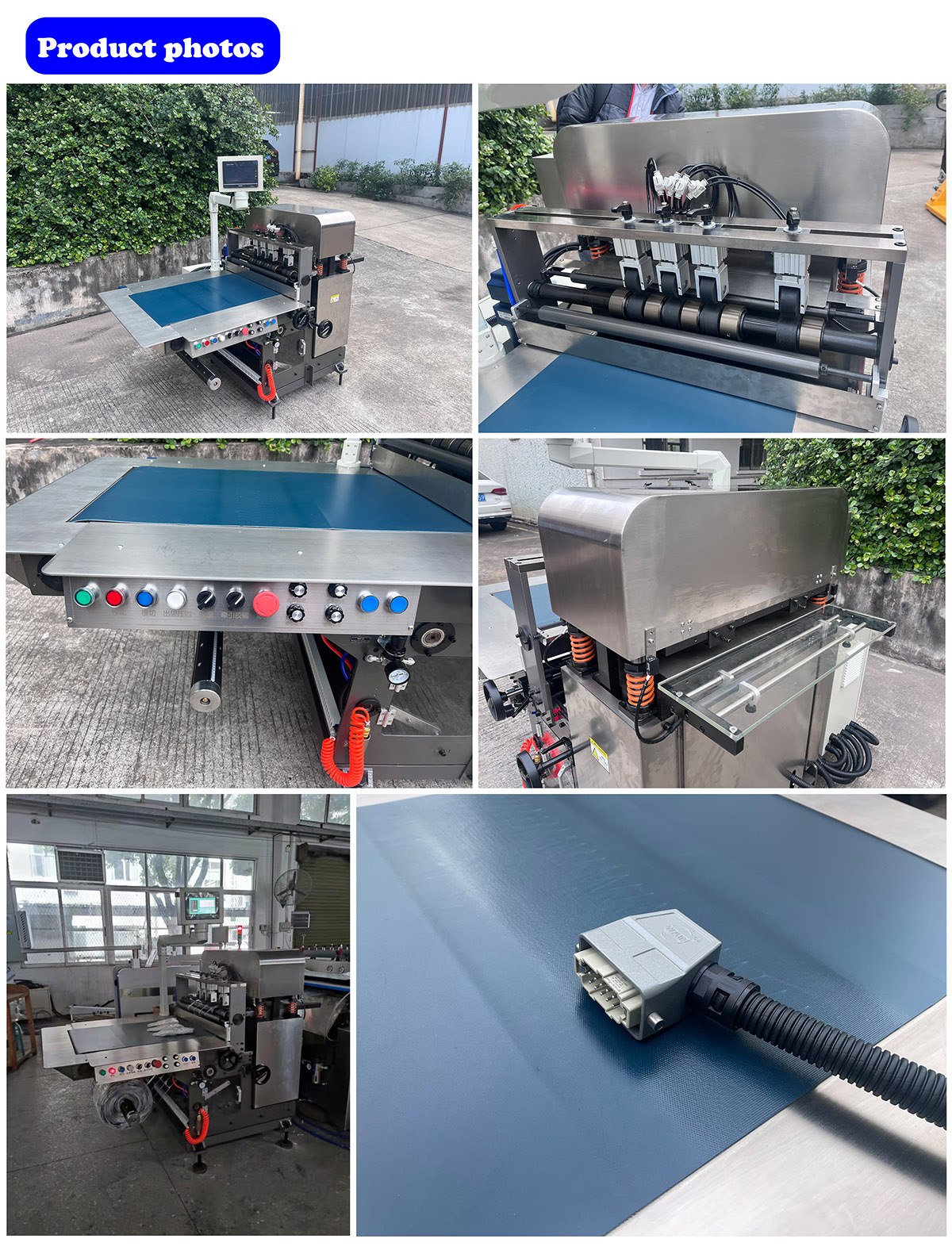

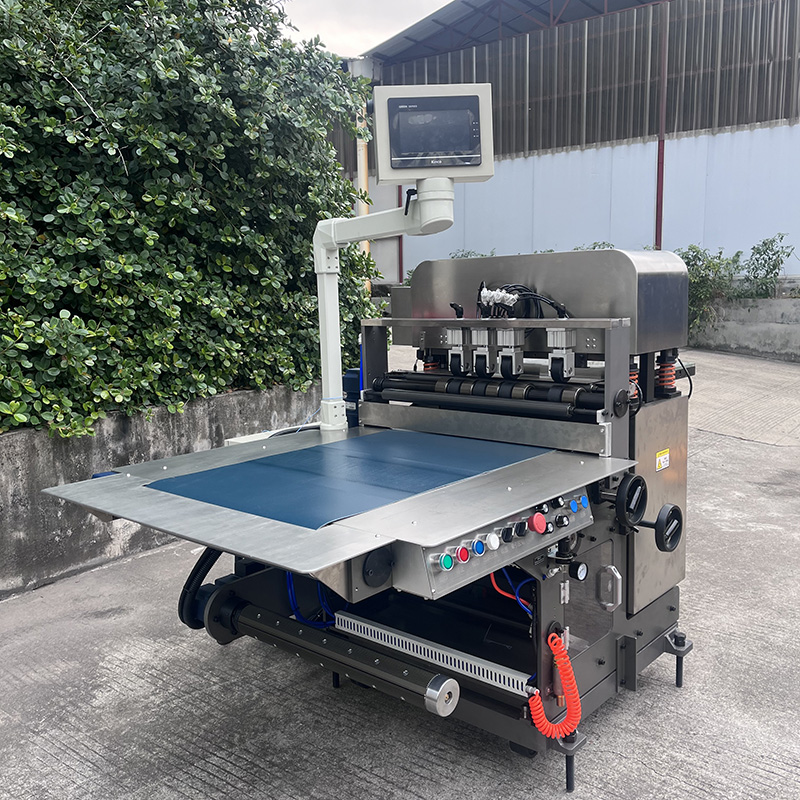

NCA6001E Die cutting machine for flexible bag making machine
Usage
1.Die cutting machine, which creates three-sided irregular bags and stand-up irregular pouches, is one of the auxiliary devices for flexible bag production machines.

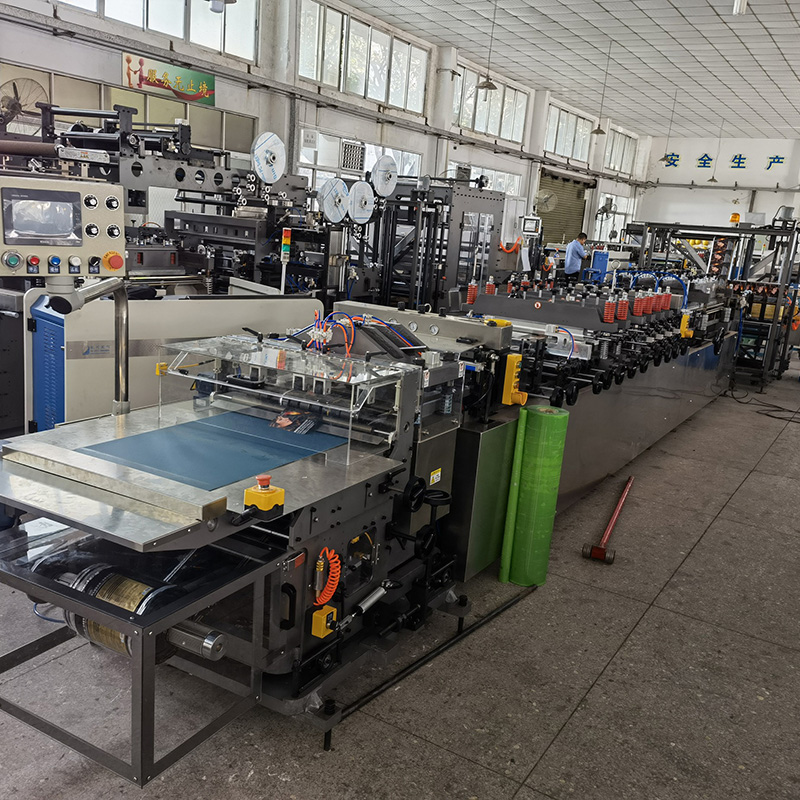

2. The device can be attached to a bag-making machine, allowing the bags to be punched in line and the leftover material to be wound automatically after punching.
3. The finished products can be packaged without further processing. in order to prevent the loss of time, resources, and labor by avoiding manual re-punching.
Advantage
1.Full frame is casting, high precision,.
2.One-key pressure regulation, automatic digital knife adjustment
3.Speed:Max150part/min
Machine introduction
For the purpose of producing three-sided irregular bags and stand-up irregular pouches, die cutting machines are one auxiliary equipment for flexible bag manufacturing machines. The device can be attached to a bag-making machine, allowing for line punching of the bags and automatic winding of the scrap material. The finished items can be packaged without further processing. in order to prevent the loss of time, resources, and labor by avoiding manual re-punching.
Machine technique parameters
| 1 | Film material | PET/PE.PET/CPP.BOPP/PE.PET/AL/NY/PE.PET/NY/PE etc laminated material |
| 2 | Material width | 600mm |
| 3 | Capacity: | 60~150pcs/min (according to the step length of bag） |
| 4 | Max punching square | MAX 580×300mm |
| 5 | Die cutter installing size | 600×320mm |
| 6 | Bag type | Three-side shaped bag, stand up shaped pouch, zipper bag etc |
| 7 | Total power | 3KW |
| 8 | Power voltage | AC380V,50HZ, 3P |
| 9 | Machine dimension(MAX): | L×W×H: 1690×1400×1600mm |
| 10 | Machine weight: | about 900KG |
| 11 | Wasted edge | Two side edges (film flowing direction) leave at least 5mm, wasted edge between two bags leave at least 4mm. |
