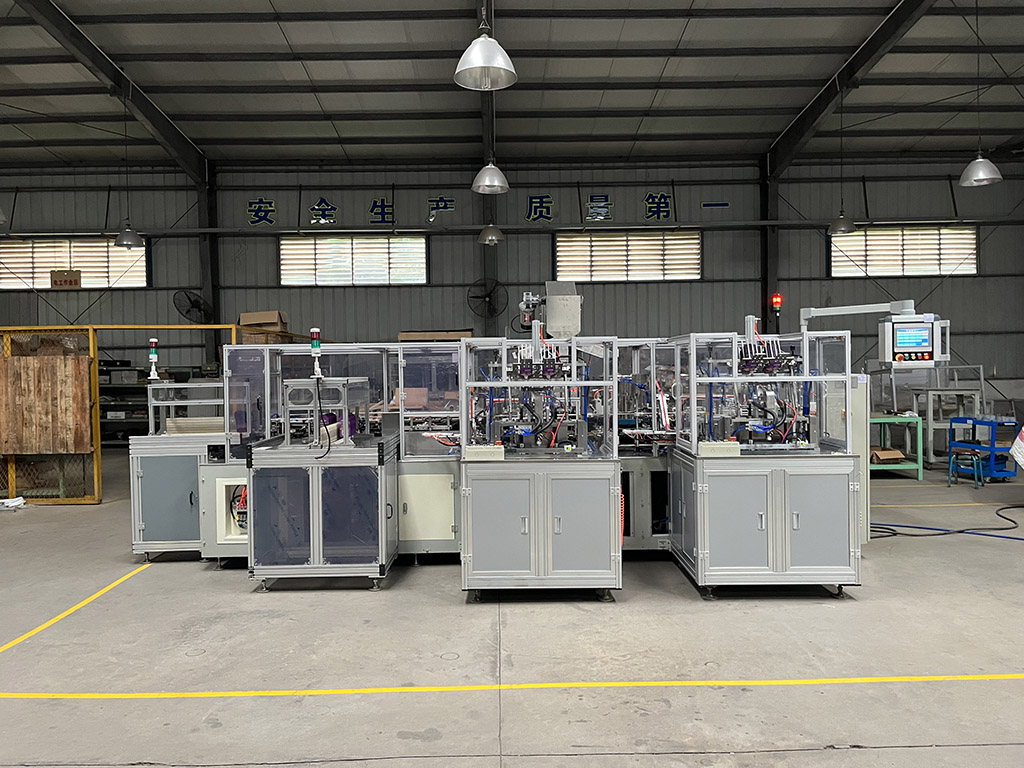

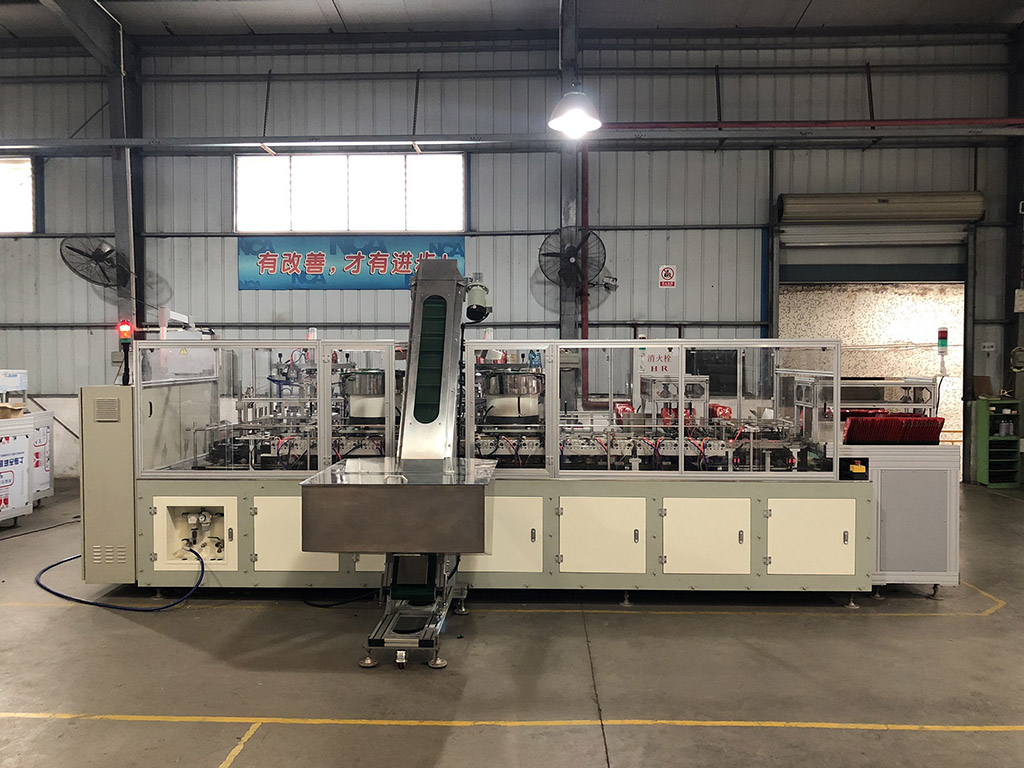

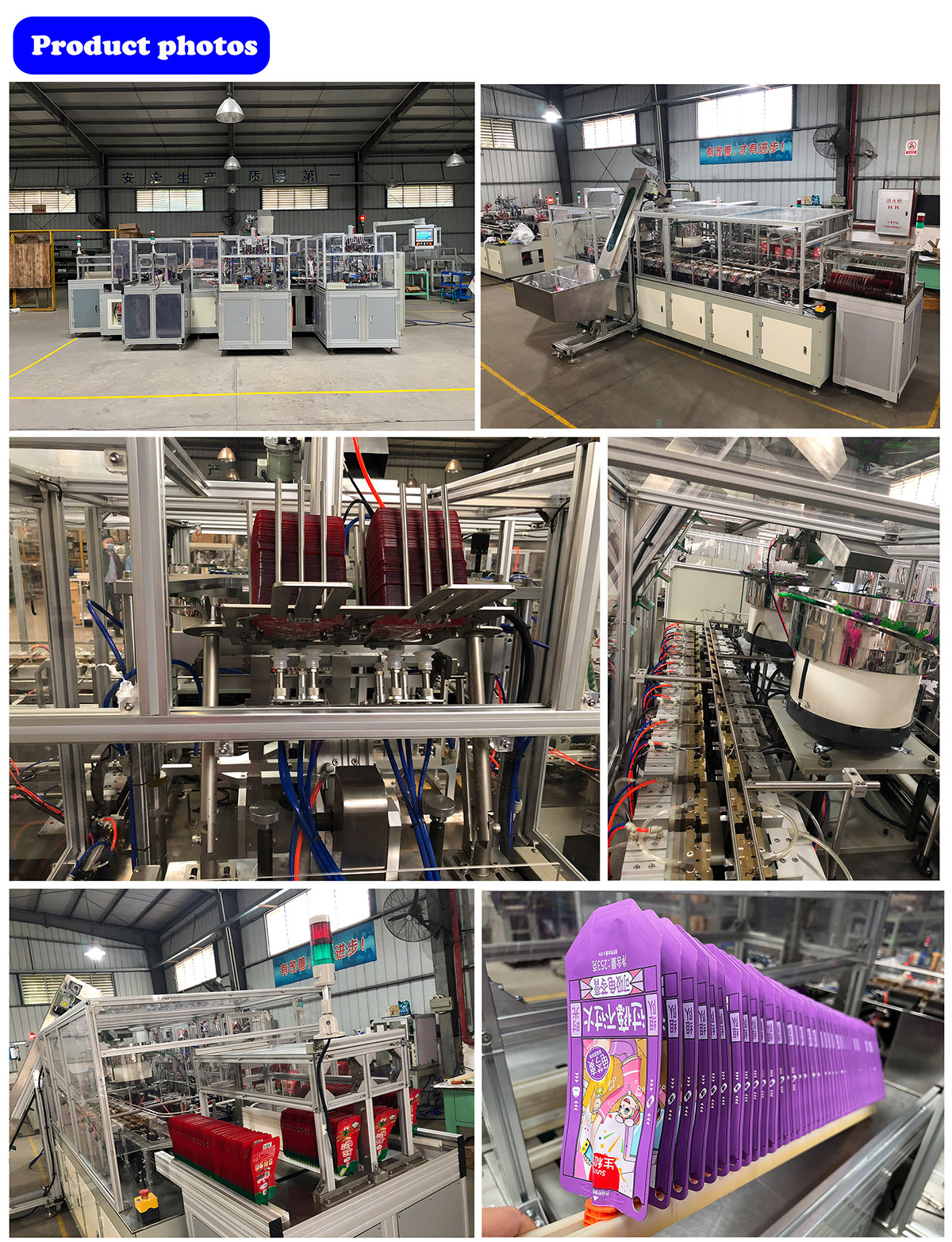

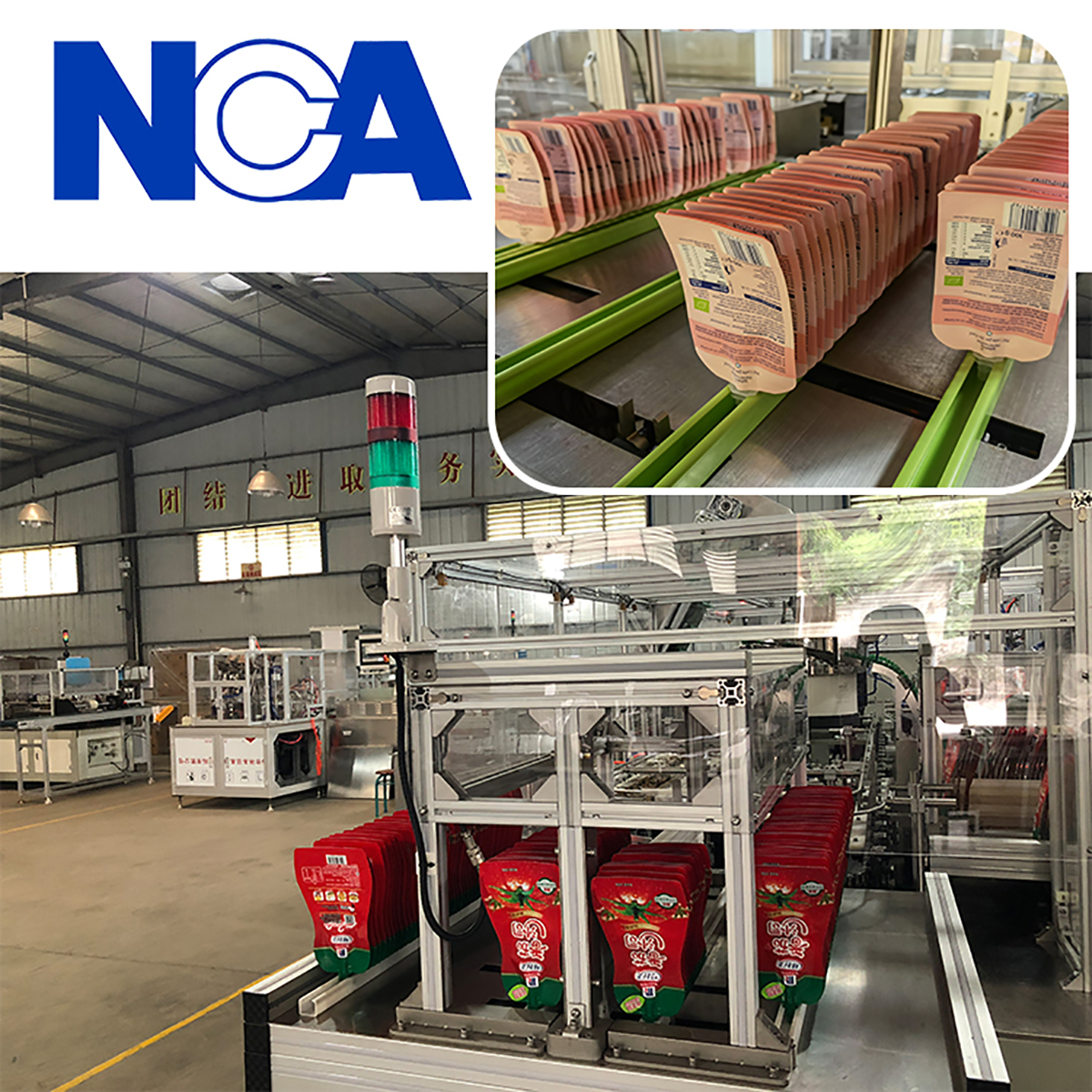

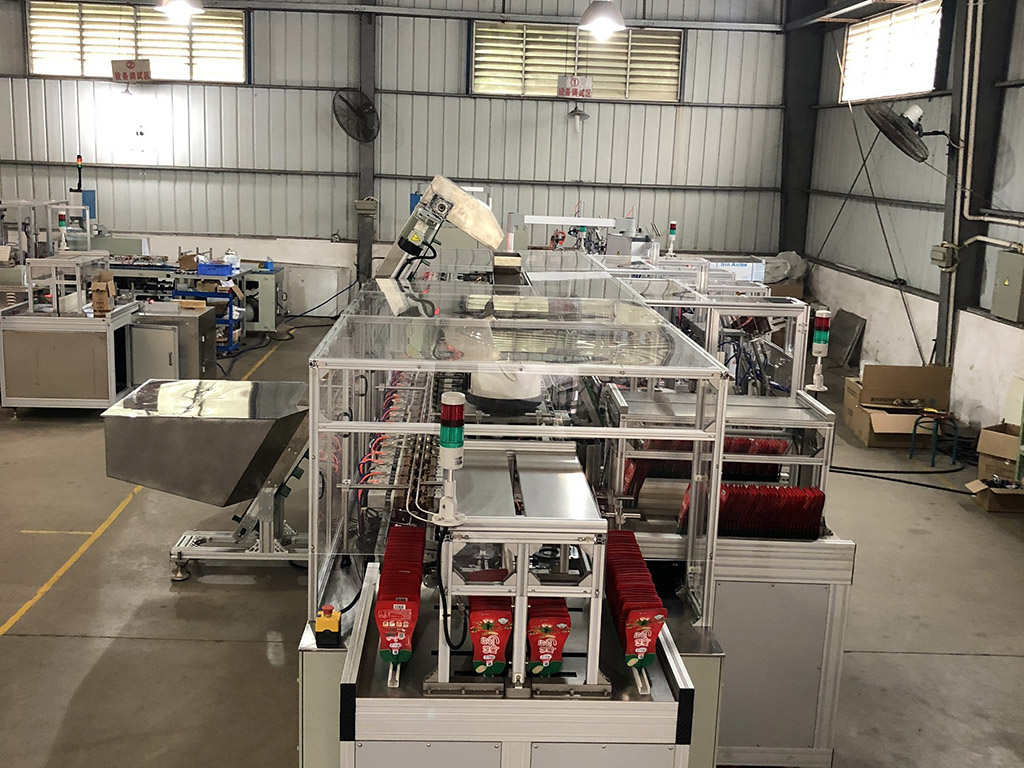

NCA1609A Flexible Pouch and Spout Automatic Sealing Machine
Usage
l.The machine is used to weld a plastic spout to a flexible pouch.

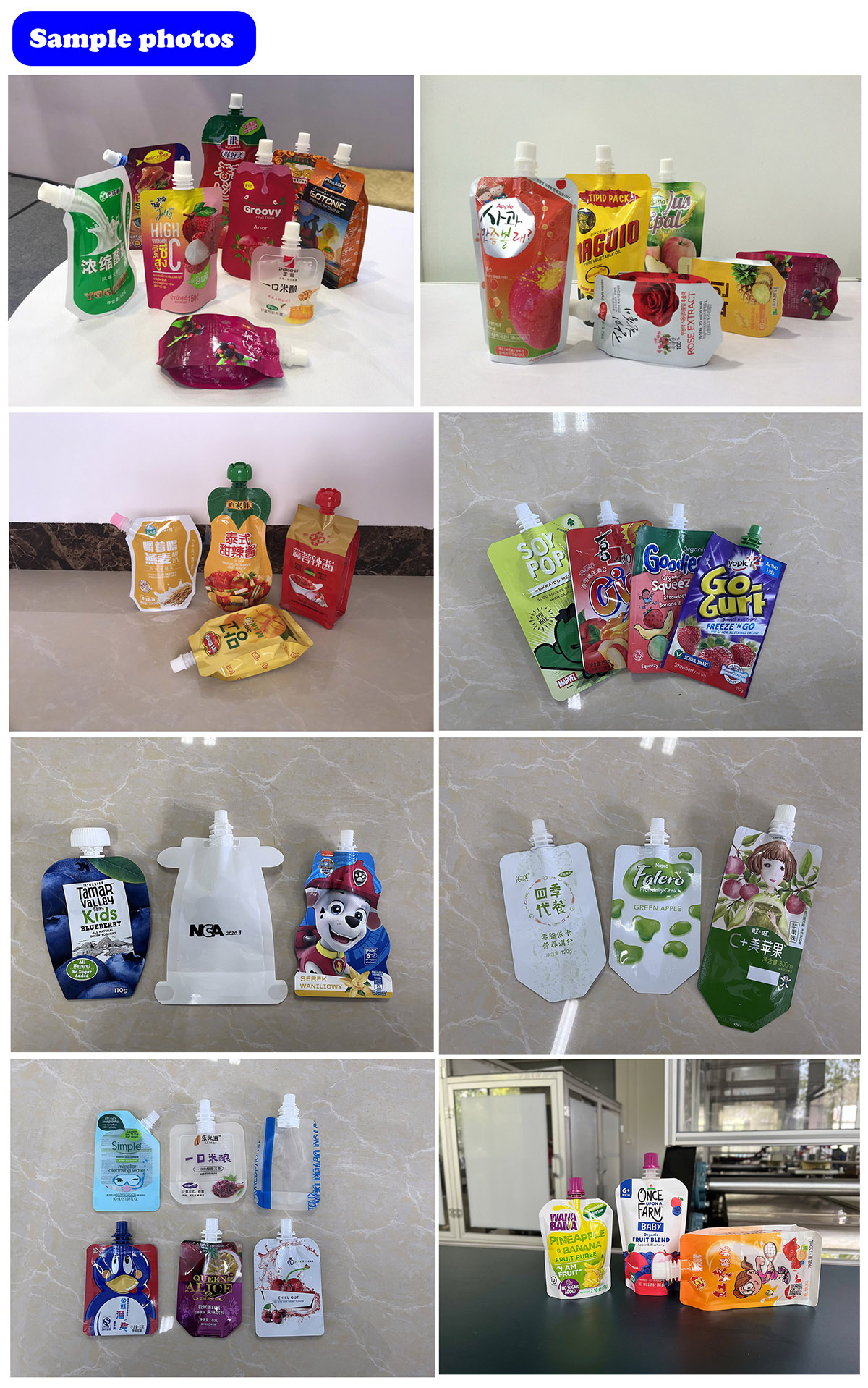

2.It is suitable for packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..
Advantage
1、Mechanical sealing ;① Small noise; ②Better sealing quality；③Saving compression air；④Extend using lifetime
2、Various function:center/corner spout pouch; speed 140-150pcs/min
3、Straight-type layout ; ①Less operators, save on labors;②It covers a small area；③Easy to operate and adjust.
Working process
Spout lining up → spout feeding → pouch putting over → first hot sealing→pushing into main machine→ hot sealing 1→ hot sealing 2 → hot sealing 3 → cold sealing and shaping →branch hot sealing to strengthen → finished product putting into plastic grooves → wasted products removing.
Main Technical Specification
|
Pouch size (L×W) |
Center spout pouch (100-190)× (70-120)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.) |
| Corner spout pouch （100-160）×（70-110）mm
(Different pouch size needs to change the pouch tank, accompanying frame etc.) Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra. |
|
| Spout type | Long or short spout with the bayonet, supplied by the customer. |
| Production efficiency | 120-140pcs/min
Note: The production efficiency varies because of the material and the difference of the pouch size. |
| Power | AC380V，50HZ，18KW，3P |
| Compressed air | 0.5-0.7Mpa, 450NL/min |
| Dimension (L×W×H) | 5800×3750×2270mm （including spout lifting device） |
| Cooling water | 6L/min |
| Weight | 3500Kg |
